APLUSLIFT HW-10KOH-A 10000 LB 2-POST OVERHEAD HEAVY DUTY CAR LIFT WITH 3 YEAR WARRANTY

Description

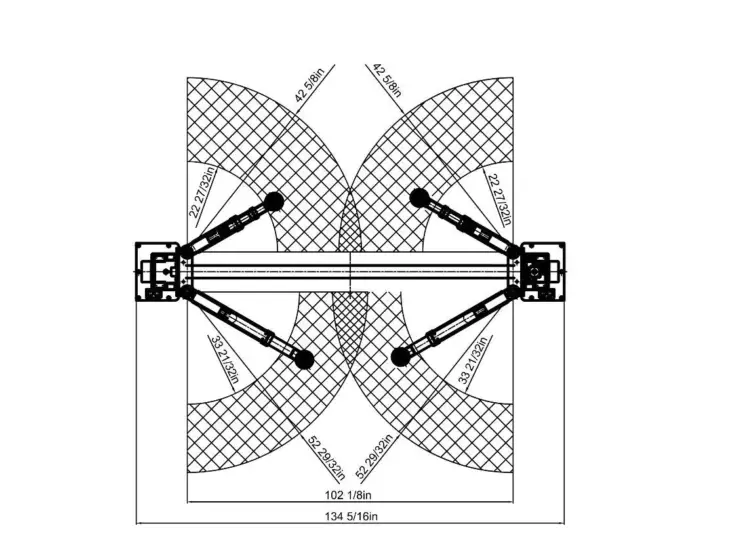

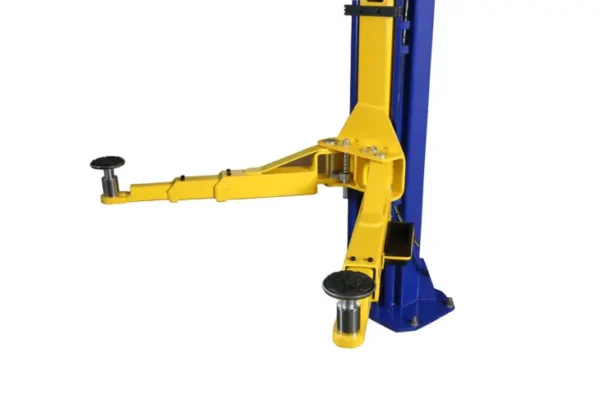

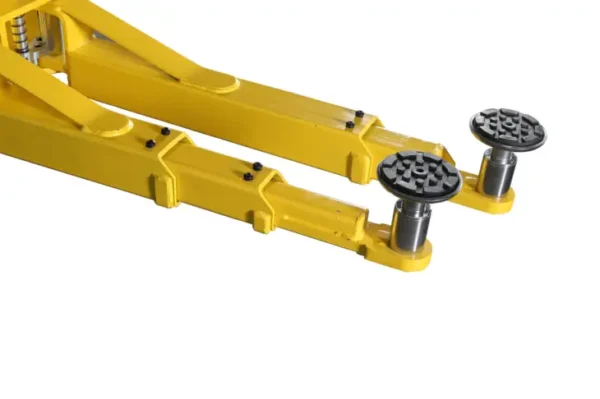

INDUSTRY LEADING 3 YEAR WARRANTY COMBO (SYMMETRICAL AND ASYMMETRICAL) ARM ASSEMBLY WITH ADJUSTABLE SCREW PADS! CE CERTIFIED LIFT STRUCTURE AND HYDRAULIC SYSTEM – TESTED 115% DYNAMIC LOAD CAPACITY AND 150% STATIC LOAD CAPACITY ONE SET OF 4″ TALL TRUCK ADAPTERS INCLUDED; 6’9″ LIFT HEIGHT MAXIMUM WITH TRUCK ADAPTERS ALL ROBOT WELDED STRUCTURE WITH DURABLE POWDER COATED FINISH APLUSLIFT HW-10KOH-A CAR LIFT (AUTO HOIST) IS ONE OF THE MOST AFFORDABLE OVERHEAD CAR LIFTS BUILT WITH QUALITY MATERIALS AND GOOD WORKMANSHIP. THE LIFT HAS A STRONG DOUBLE “S” COLUMN DESIGN TO SUPPORT 10,000 LB CAPACITY. SPECIFICATIONS Overall Height: 143 3/16″ Overall Width: 134 5/16″ Maximum Lift height with Truck Adapters: 81″ Maximum Lift height without Truck Adapters: 75″ Minimum Height of Arm Top: 4.5″ Drive Through Width (Carriage to Carriage): 100″ Column to Column Width: 109″ Column Cross Section: 11″L x 7″W Driving Mode: Dual hydraulic cylinders, chain drive Motor: 220V Single Phase 3HP 10A (recommend a 30A breaker) Hydraulic Oil: 3-5 gallons AW32/AW46 (Not Included in the Package) Lifting Capacity: 10,000 LB Time to full rise: 50 sec Combo (Symmetrical and Asymmetrical) Arm Assembly Straight Front/Rear 3 Stage reach from 22 7/8″ to 42 5/8″ Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″ 4 Pieces of Adjustable Screw Pads Included 4 Pieces of 4″ Tall Truck Adapters (Height Extensions) Included Shipping Weight: 1,450 LB Shipping package size: 113″L x 22″W x 40″H Concrete Requirement: 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below) 10 anchor bolts and 10 shims included Tool trays and toe guards included Column Steel Thickness: 13/64″ Carriage Steel Thickness: 15/64″ Carriage Yoke Thickness: 9/16″ Arm Steel Thickness: 15/64″ Base Plate Steel Thickness: 5/8″ FEATURES CE Certified Lift Structure and Hydraulic System Third party tested with a dynamic load capacity of 115% Third party tested with a static load capacity of 150% Durable hydraulic system Easy to operate and maintain Double point safety lock release Double Seal Rings Protecting PU Material Carriage Material Q355 (ASTM A572), Stronger Than Normal Q235 Steel Lifting operation by pressing “UP” button on motor Manual lowering operation by pressing lever Relief valve built in power pump to prevent overloading Automatic arm lock restraints Relief valve built in power pump to prevent overloading Door guards protection rubber Up-limit switch to protect cylinders working stroke used in safe length scope Heavy duty 3/8″ diameter cable and 5″ pulley that reduce high stress on synchronization process and increase cable life Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down Shipping Information: Free Shipping : Residential delivery within 5 to 8 days to all U.S. states.
